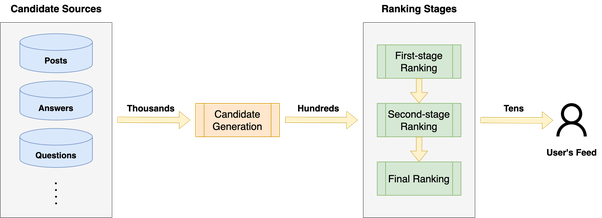

Written by Wenhao Su, Lida Li and Michael Ran Chen from Quora’s ML Platform team At Quora, we're constantly striving to enhance user experience by delivering relevant content efficiently. A key component in achieving this goal is our embedding search system, which powers content discovery, personalized recommendations, and knowledge retrieval across our products, including Quora and Poe. In this post, we'll take you through our journey of revamping our embedding search system architecture. We'll discuss why we needed a change, our decision to adopt Qdrant as our vector database, the challenges we faced during implementation, and the significant improvements we've seen as a result. We use embedding search widely in our machine learning systems. Here are a couple of major use cases: 1. Candidate Retrieval As shown in Figure 1 below, modern recommender systems for web-scale applications typically involve several stages: candidate retrieval, first-stage ranking, second-stage ranking, and final reranking. Embedding search is a major component of Quora’s candidate retrieval system. This step retrieves thousands of candidate content to be ranked in later parts of the system. We employ multiple machine learning models to generate the embedding representation of Quora’s content, though we won’t go into details about the models in this blog post. Fig 1. Modern recommender system workflow 2. Knowledge Retrieval for RAG System The Poe platform allows users to upload their own knowledge base to their user-created bots, which can bring new knowledge to the large language model (LLM) in a process known as Retrieval-Augmented Generation (RAG). The uploaded documents are chunked and converted into their embedding representation. When the user sends a message to the bot, the relevant chunks are retrieved using embedding search and added to the LLM context, enabling the bot to leverage the additional knowledge base provided by the user. In the past, we have developed two in-house embedding search systems, each with its own strengths as well as limitations: Over the years of operating these systems, we have encountered significant challenges and limitations that hinder the advancement of Quora’s recommender systems. The lack of essential features and the complexity of maintaining two separate systems have led us to the realization that it is time to overhaul our embedding search architecture. Based on our experience at operating the existing embedding search systems, we laid out the requirements for the new system: In the past, we have utilized various open-source libraries (Fassis, HNSWLib, NGT, etc.) that can build embedding indexes and perform embedding search. However, these libraries are usually not designed for high-throughput, real-time embedding search use cases. It would require significant engineering effort to build a full-fledged system that supports realtime search, sharding and filtering around these libraries, which we wanted to avoid if possible. Fortunately, many new options for a realtime embedding search system have emerged in recent years, including dedicated vector databases (Milvus, Qdrant, LanceDB, etc.), support for embedding search in existing data storage systems (Postgres, MySQL, Elasticsearch, etc.), and SaaS services (Pinecone, etc.). It is the right time to leverage these solutions. After careful evaluation and testing, we chose Qdrant to be the core of our new embedding search system. Architecture Qdrant stands out due to its alignment with our key requirements. It is designed for high-performance and low-latency vector similarity search. It uses the HNSW approximate nearest neighbor algorithm, which we were familiar with due to our existing use cases. It has built-in support for distributed mode which allows Qdrant to scale horizontally, capable of handling hundreds of millions of embeddings spread across multiple machines. One of the most appealing aspects of Qdrant is the ease of operation. This is especially important for a small team like ours. The self-contained architecture means we can get it up and running without having to worry about complex external dependencies. Also, Qdrant provides great visibility into how the system is performing, with detailed metrics and monitoring features built-in. Qdrant provides compatibility for supporting our existing bulk load mechanism. Its snapshot functionality makes it possible to regularly update the entire embedding set with minimal disruption to the running service. In addition, it has the ability to combine vector search with metadata filtering, which gives us powerful and flexible querying capabilities. Overall, Qdrant checks all the boxes - high performance, high scalability, rich functionality, and ease of use. Performance Evaluation We benchmarked Qdrant against our in-house embedding search system, which also uses Approximate Nearest Neighbor search, to compare their search speed. The table below shows the results of a test where we retrieved the top 2000 vectors from a collection holding ~1.16 million embedding vectors, where each vector has a dimension of 513. We observed that Qdrant is about 5-6 ms faster in search time under similar load. Qdrant showed less variable performance, with smaller standard deviations compared to our in-house solution. During our tests, we also noted that Qdrant performs significantly better when searching on higher dimension vectors (e.g. 1024-dim). This will unblock future use cases that require larger embedding sizes. These benchmark results gave us confidence that Qdrant can be a good choice for replacing our existing in-house embedding search system. There are two important request paths that we needed to support: Embedding Search and Embedding Updates. In the diagram below, the red boxes indicate the embedding update path, and the blue box indicate the embedding search path. Fig 2. Embedding Search architecture overview Embedding Search There are multiple clients written in different programming languages that need to make requests to Qdrant. Although we can directly call the Qdrant API in these different clients, it requires duplicating some application logic across multiple languages including Python, Golang and C++. We determined that it would be valuable to have a proxy service in front of the Qdrant database to handle search traffic coming from different services. Some key advantages of this approach include: In Figure 2, the embedding search workflow is highlighted inside the blue box. The Qdrant-proxy service will serve as the intermediary service in this workflow. It will receive search requests from clients, forward them to the Qdrant service, process the responses, and return the results back to the clients. Embedding Update There are two types of embedding updates we needed to support. The first type is realtime ingestion, which is highlighted in the top red box in Figure 2. The second type is snapshot restoration, which is highlighted in the bottom red box. Realtime Ingestion We want the user’s activities on Quora, such as upvoting an answer or following a question, to have a realtime effect on the candidates being generated for this user in their recommendations. To accomplish this, we log updates from all relevant user activities to a Kafka topic. We have built an ingestion service to read from those Kafka topics and write updates to the Qdrant database. Snapshot Restoration Some of our embedding generation models are re-trained regularly in offline machine learning pipelines. For some collections, the entire set of embeddings needs to be updated when this happens. We maintain a version number for these collections; each time the offline training job generates new embeddings, we replace the existing ones and increment the version number. We did not want to enqueue updated embeddings to the same Kafka ingestion system as the realtime updates, as this could result in long processing times, and frequent re-indexing operations affecting the performance of the cluster. We utilize the snapshot restoration feature of Qdrant to bulk-load the entire set of embeddings directly. Fig 3. Snapshot restore pipeline Figure 3 shows the high-level steps to update the entire set of embeddings in a collection. These steps are orchestrated by Airflow tasks. The steps are: A snapshot-restorer service will dynamically monitor the S3 bucket for any new snapshot files. Whenever a new snapshot is detected, the snapshot-restorer will automatically load the corresponding collection with the new version number to the Qdrant database in production. Collection Management Similar to database management, we allow machine learning engineers to define configurations for their collections directly in the code. These configurations include collection-level properties such as the number of shards, number of replicas, HNSW indexing parameters, and payload indexing settings. Whenever there is a change to the configuration, a deployment pipeline will automatically update the affected Qdrant collection to reflect those changes. During the migration to Qdrant, we encountered many challenges and gained useful learnings. Collection sharding strategies Qdrant supports both standalone mode, where each collection is contained on only one node, and distributed mode, where each collection is sharded across multiple Qdrant nodes with replication between them. This distributed architecture provides benefits such as horizontal scaling, the ability to serve large collections, and high reliability. These benefits motivated us to create our first Qdrant cluster in distributed mode, as illustrated in Figure 4. Fig 4. Qdrant cluster running in distributed mode with 3 nodes, where each shard has 2 replicas However, this mode also presents some challenges. One downside is operational complexity. During vertical or horizontal scaling, shard transfers occur in the background to rebalance collection shards among Qdrant nodes. This process typically consumes significant CPU and memory resources, which can impact search latency and cause errors. As shard transfer tends to be more expensive on huge collections, we later decide to use the standalone mode for hosting all large collections that involves heavy embedding update traffic. As shown in Figure 5, this means every collection only has 1 shard. In this mode, each Qdrant node is a replica of one another and holds a copy of every collection in this cluster. Fig 5. Qdrant cluster with standalone mode This approach eliminates shard transfers between nodes, significantly reducing the resource risks associated with operations like adding new collections or scaling the cluster. However, it also limits us to vertical scaling the cluster for accommodating more collections. Overall, after experiencing the challenges of heavy shard transfer operations, we opted to place all collections with significant embedding update needs into standalone mode Qdrant clusters, while using distributed mode for most other collections due to being able to benefit from horizontal scaling. Quantization Quantization is a way to reduce the memory required for storing many embeddings by compressing the vector data type, or reducing its dimension. An example of quantization supported by Qdrant is to convert all While quantization is easy to use and can significantly reduce memory footprint, it led to a reduction in accuracy of the results (recall) which required also enabling oversampling and reranking. However, we found that the combination of these features placed a heavy demand on disk I/O because they needed to read the original, non-quantized vectors from the disk. Hence upon process restart, the OS disk cache requires a long time to warm up, before the service is able to serve search traffic without an elevated error rate. In summary, our finding is that if Qdrant is using cloud disks like Amazon EBS and serving high traffic, it may not be a good idea to use quantization together with oversampling and reranking. Online & offline sub-collections In the Embedding Update section, we have introduced our approaches for online ingestion and offline bulk updates. In practice, some of our collections require both online ingestion to update the embedding vectors in realtime, and the offline snapshot restoration to refresh the entire collection periodically. Fig 6. Update loss for collections with both realtime ingestion and snapshot restoration For those collections, an additional issue arises as illustrated in Figure 6. Typically, the offline snapshot restoration process takes approximately 30 minutes. During this interval, all real-time embedding updates continue to be recorded in the previous version of the collection. Consequently, when the collection with the new version number is created, it will not include any embedding updates made during the snapshot restoration period. Fig 7. Design of online & offline sub-collections To mitigate the potential for data loss, we introduce the concept of online and offline sub-collections for these use cases. As illustrated in Figure 7, for the To handle embedding search requests, the Qdrant-proxy service sends search queries to both the version 13 online and offline collections, merges the results, and returns them to the client. This online and offline sub-collection design ensures that no real-time embedding updates are lost during the offline snapshot restoration period, albeit at the cost of sending search requests to both sub-collections and the added complexity of merging results on the Qdrant-proxy side. The work to revamp our embedding search capabilities with Qdrant has significantly improved our ability to deliver personalized and relevant content to our users efficiently and has set a strong foundation for future enhancements. Several product enhancements have been launched that were not possible with our old embedding search system. We also received positive feedback from our ML teams that the new system is much more flexible and easier to use. As with any new technology adoption, we faced early adopter challenges. The migration to Qdrant involved overcoming various issues, from handling distributed systems complexity to tuning performance for our specific use cases. These hurdles required our team to engage deeply with Qdrant's features, often pushing the boundaries of its capabilities. We are excited to see the improvements from every new release of Qdrant, which often addresses pain points we have encountered. Looking ahead, we are excited about the potential enhancements and innovations that can be built upon this modernized foundation. The support from the Qdrant community, combined with ongoing development and updates, ensure that we can continue to adapt and evolve our systems to meet future challenges. Special thanks to Lida Li and Michael Ran Chen for their leadership and support. Appreciation also goes to our Machine Learning team members, Victor Chen, Brendan Graham, and Dzmitry Dalenka, for their crucial contributions during the early adoption phase. Their efforts significantly shaped the project’s success. Finally, we are grateful to the Qdrant team and the broader community for their responsive support, insightful suggestions, and technical assistance, which have been invaluable.Introduction
Background
Previous State
Evaluating New Solutions
Why Qdrant?

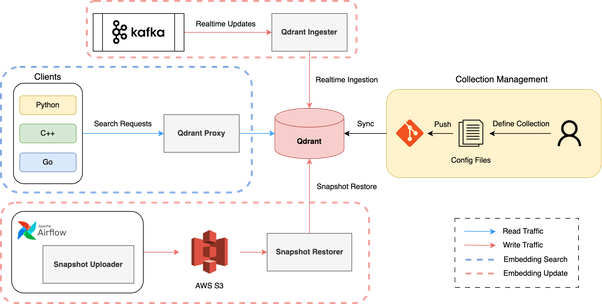

Design and Implementation
Learnings

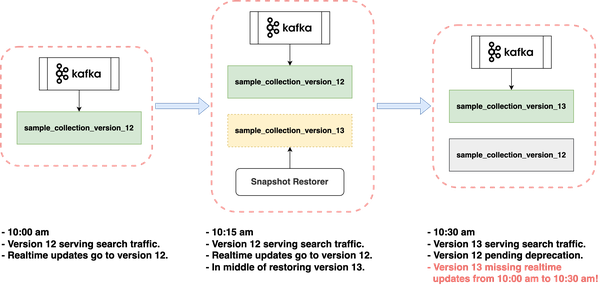

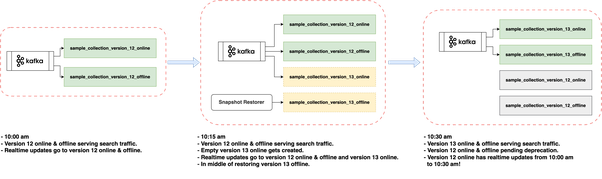

float32 numbers in an embedding to int8, which reduces the memory used by 75% and makes embedding search faster. Qdrant provides multiple different quantization methods, each with trade-offs in accuracy, speed, and compression ratio.sample_collection, we maintain both online and offline collections for version 12, with both receiving real-time ingestion. When the snapshot restoration process begins to create version 13, we immediately establish a new version 13 online collection to start receiving real-time updates. This ensures that by the time the version 13 offline collection is ready, the online collection will have captured all real-time embedding updates from the 30-minute gap.Conclusion
Acknowledge
